Windshield snow brush with ice scraper mold

China professional plastic snow brush handle and ice scraper mold making factory,who can provide you best quality plastic mold and high quality service.

Product information

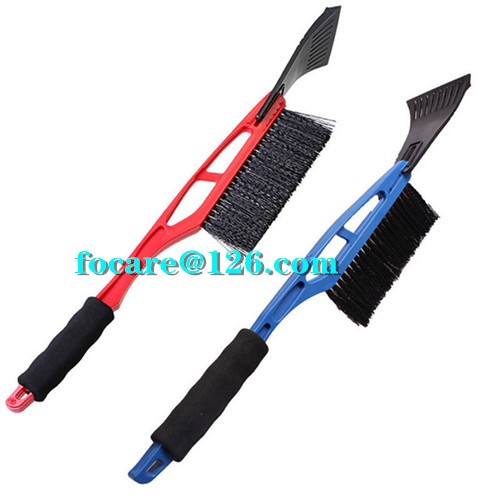

1.Snow brush handle
-Size:424.5 X 40.2 X 17.2mm
-Weight: 72g
-Material:PP
2.Ice scraper
-Size:95.4 X 141.1 X 29mm
-Weight:39.3g
-Material:ABS

Mold information

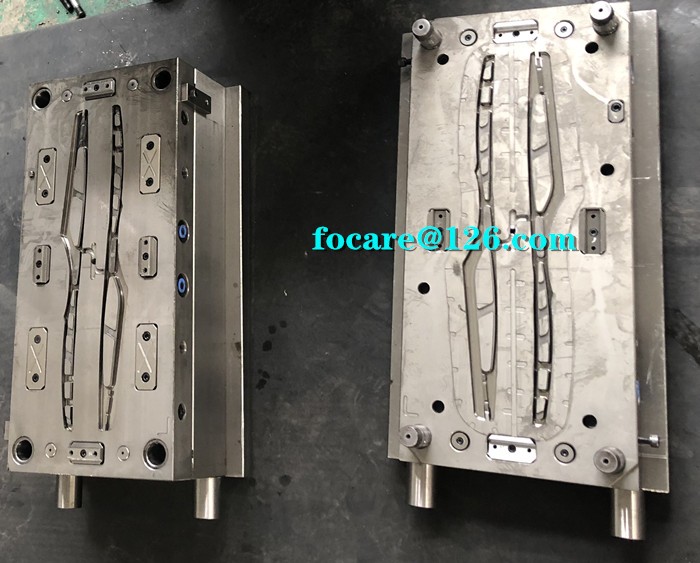

1.Snow brush handle mold

-Mould cavity:2cav

-Mould steel :718H with hardness 32-35HRC
-Gate type:cold runner system
-Mould size:300 X 540 X 245mm
-Mould weight:223кg
-Suitable injection machine:160ton

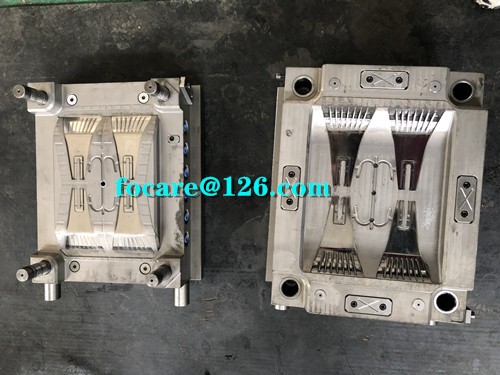

2.Ice scraper mold

-Mould cavity:4cav
-Mould steel :718H with hardness 32-35HRC
-Gate type:cold runner system
-Mould size:400 X 450 X 310mm
-Mould weight:330кg
-Suitable injection machine:160ton

If you are interested in plastic snow bush mold and ice scraper mold design,mold making or mold testing,just send email to me.
